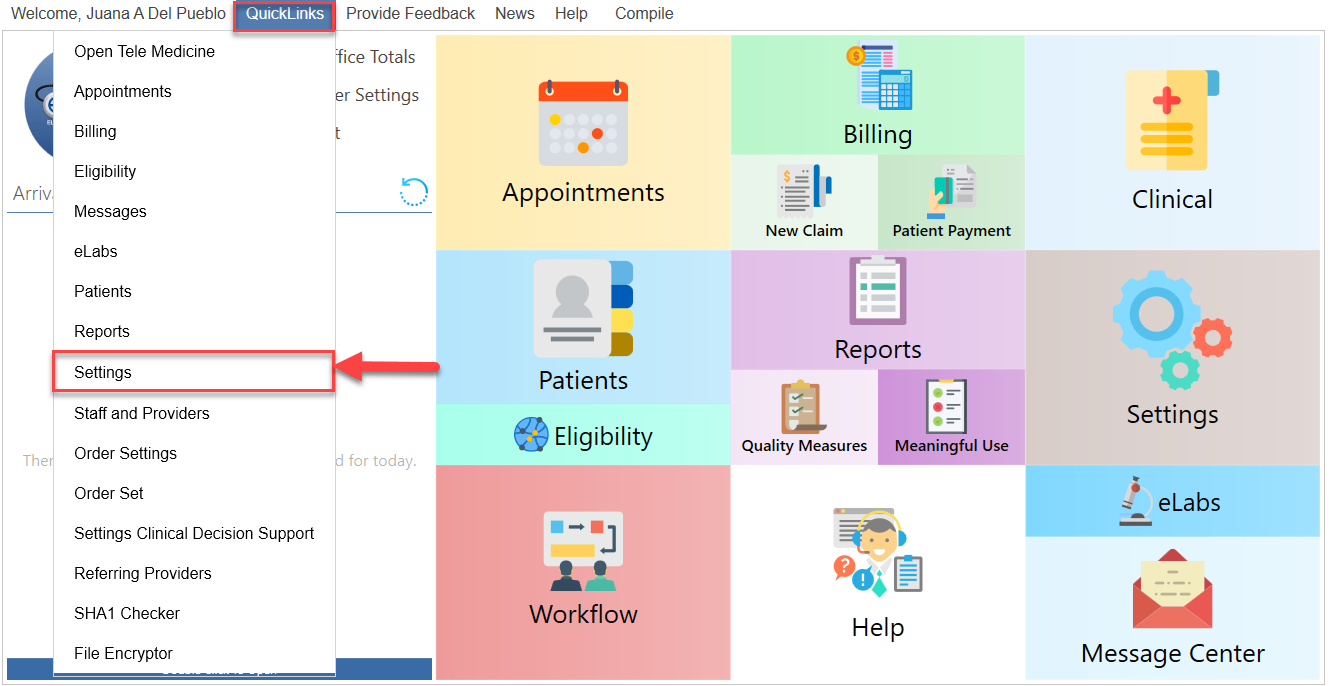

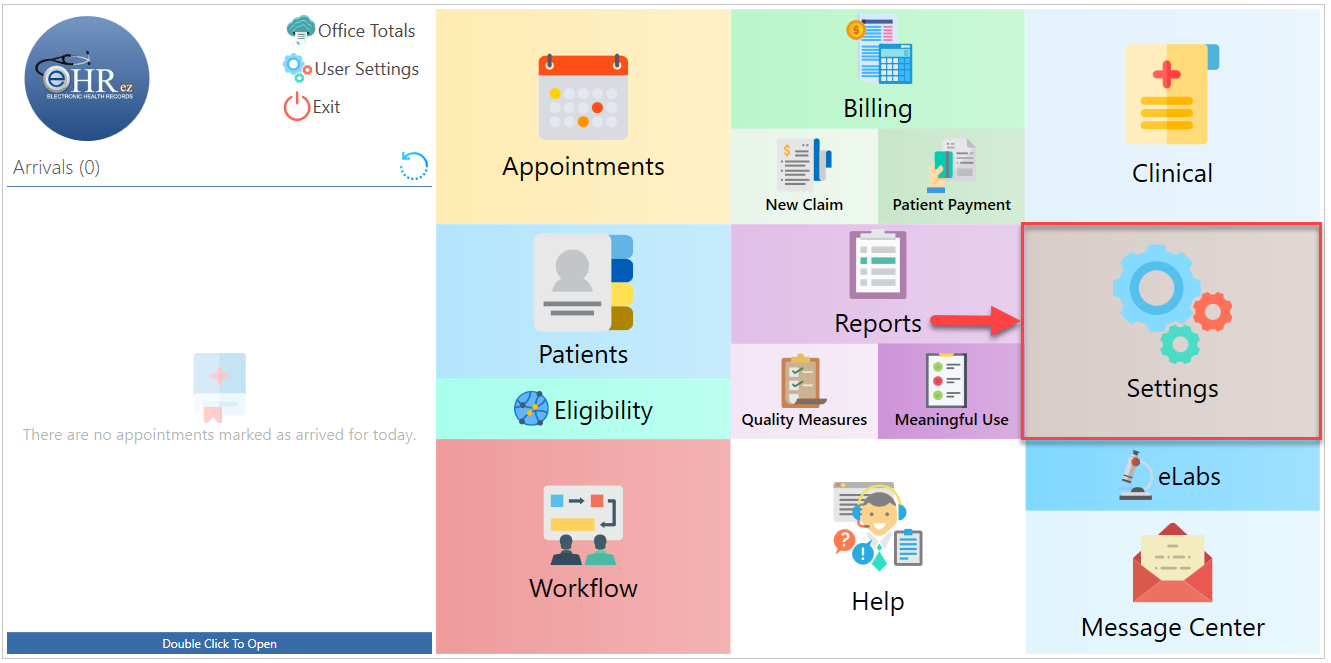

• Go to the Settings screen.
  • Select the Clinical button and then press the Image Library button.
  • The following screen will be displayed:


  • Press the New button to add an image to library.
  • The following screen will be displayed:


  • Press the Browse button to select from computer.
  • Press the Scan button if image will be scanned.
  • Press the Webcam to capture image.
  • Then press the Save button from Browse, the green check mark as done from Scan and the Done button from Webcam.


  • Press Save.
  • The File Details screen will be displayed to select the Sub-Category, Title and note related to image:


  • Press Save to store image.
  • To use the saved image in the Physical Examination screen, press the Add button located in the upper right side of screen and then press the other Add button located in the first column of screen.


  • The following screen will be displayed:




  • Select the last option in order to display the Image Library screen and select the saved image:


  • Once image is selected it will be displayed in the Physical Examination screen to continue with the patients physical evaluation.
